High quality industrial glass drilling machine

FOB Reference Price:Get Latest Price
$3,365.00 - $4,038.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZK0222
Max. Glass Size:
2200*2700mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Machine Type:
Glass Drilling Machine
Production Capacity:
0.5-5m/min
Power(W):
2.45KW
Certification:
ISO
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Advertising Company
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Sunmiga
Voltage:
380V
Dimension(L*W*H):
2200*1470*175mm
Weight:
800KG
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Easy to Operate
Operation:
Automatic, manual
Color:
white
Application:
Glass drilling hole
Control:
PLC
Drilling bit:
up and down
Function:
drilling holes
Working table:
iron base
Processing thickness:
3-30mm
Max. processing size:
2200*2700mm
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Waterproof film or wooden case
Port
Guangzhou
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated

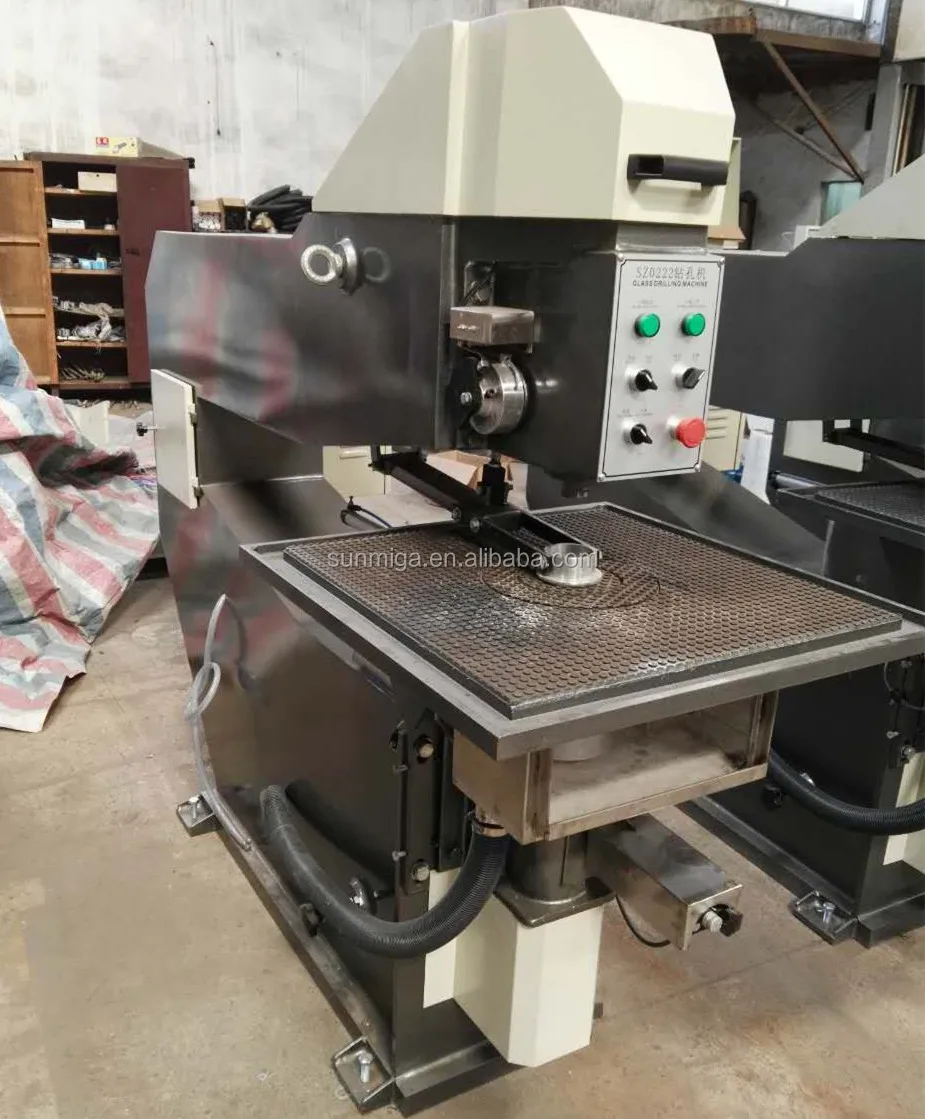

High quality industrial glass drilling machine                                                               Glass drilling machine adopts the 45 thick steel plate to make the machine frame, which is treated after high temperature annealing, ensuring the stability to load max. weight.



Working table of industrial drilling machine is made up from cast iron, makes machine more stable.



High quality industrial glass drilling machine can drill big size holes, can process the big size glass.



Bottom drilling bit feeds automatically, upper drilling bit feeds manually, performance is better.



Producing efficiency is high, is the best equipment for  volume production.





Product details:

1412498299785_hz-fileserver-upload-01_5194829

HTB1fTCgNpXXXXXMapXXq6xXFXXX3.jpg   HTB1ftOoNpXXXXavaXXXq6xXFXXXJ.jpg







HTB1m.9kNpXXXXcXaXXXq6xXFXXXa.jpg   HTB1rT5rNpXXXXcEXVXXq6xXFXXXB.jpg












Technical Parameters:



Max. processing size2200*2700mm
Glass thickness3-30mm
Drilling diameterΦ4-Φ220mm
Total power2.45kw
Machine weight800kg
Machine size2200*1470*1750mm
Packing size2300*2200*1800mm
